Blue Lake FCC Material
Ultra‑Thin Thickness, Maximum Brightness

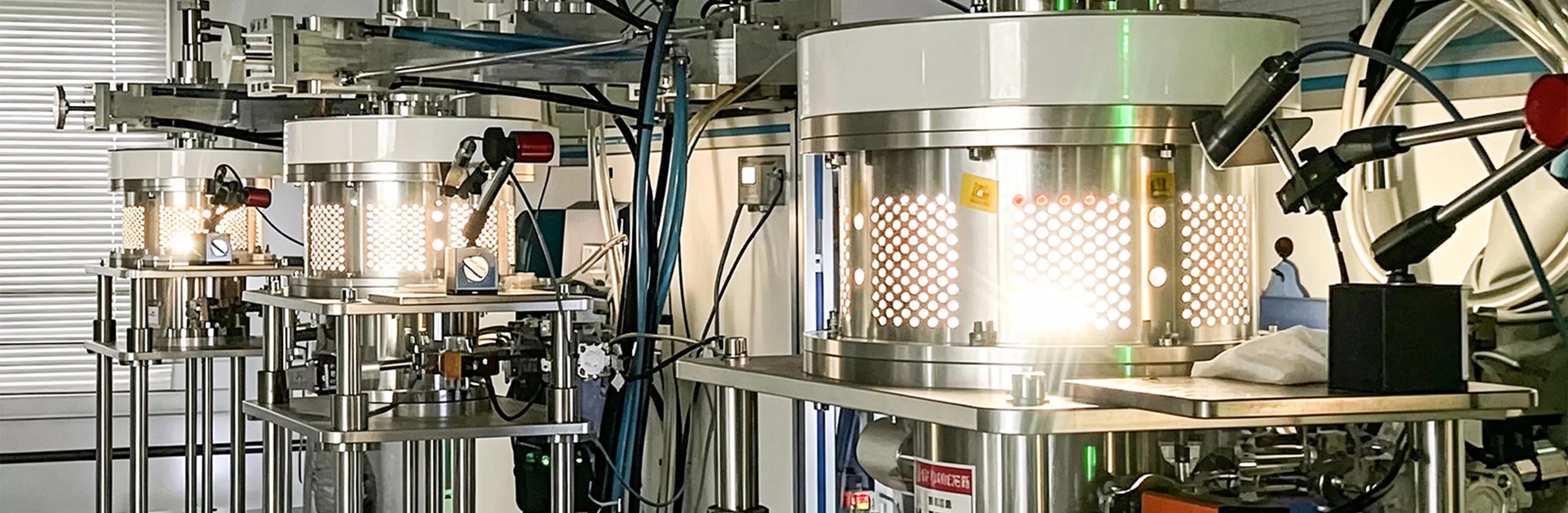

In 2015, Blue Lake achieved the world’s first Fluorescent Crystal Coating (FCC) production using self‑developed custom equipment under conditions of 1700 °C and 2000 atmospheres.
Blue Lake FCC features an industry‑leading ultra‑thin thickness of 30 μm. Its minimal thickness delivers superior thermal conductivity and enables maximum brightness performance.
Comparison of Three Materials
Thickness (μm) | Thermal Conductivity W/(m.K) | Maximum Brightness (cd/mm2) | Reliability | |
| Phosphor in Silicone | 200 | 1 | 200 | Organic |
| YAG Ceramic | 100 | 11 | 2000 | Inorganic |
| FCC | 30 | 8 | 5000 | Inorganic |
请点击“编辑模块”修改内容...
Ultra‑Long Service Life

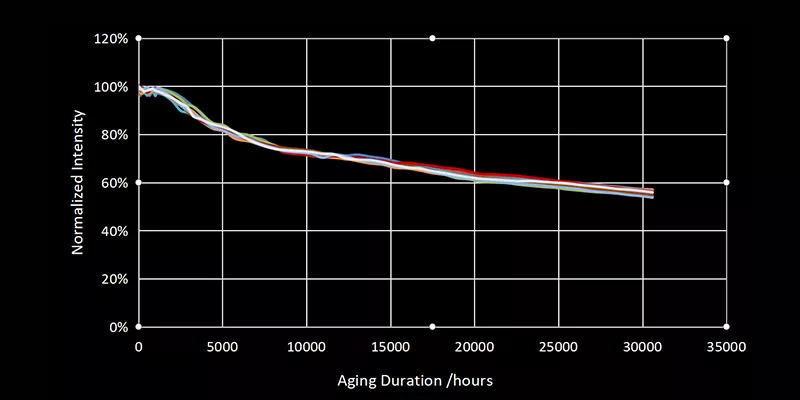

The ultra‑thin design also ensures stable operation. Blue Lake FCC is resistant to burnout, guaranteeing top‑level safety performance.Our earliest‑generation WP-Rx product has undergone continuous aging testing for over 80,000 hours.
The product has a long‑term operating lifetime of 10,000‑30,000 hours.
